HyperSource: 下一代震源通信
英洛瓦的G3i HD震源通信新一代创新方法旨在克服当前无线电技术的局限性。HyperSource由几个构成有线网络和无线网络混合通信的组件组成。
你知道吗
HyperSource可用于通过震源访问将源无线通信范围扩展到记录传播范围之外。
该解决方案为野外作业中的振动器提供了更宽的通信范围，通常超过10km
HyperSource通过其混合网络和有线网络的独特组合消除了无线网络覆盖黑点或死区。

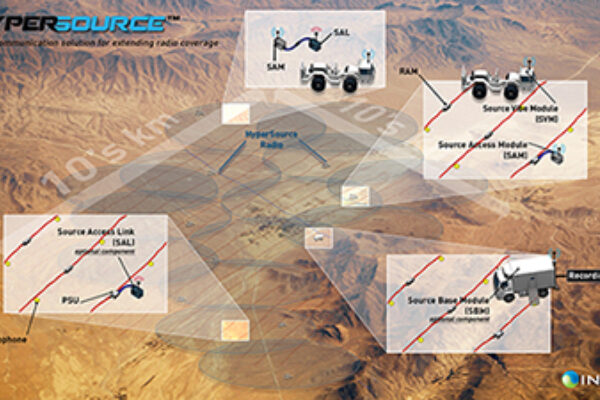

HyperSource consists of several components that form a hybrid, wired and wireless communication network. A solution tailored towards high-productivity vibroseis operations.

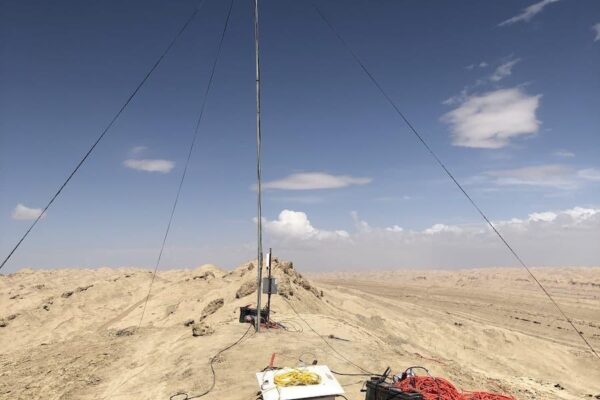

震源访问模块（SAM）
SAM由无线电设备和其他电子设备组成，并配有与已部署G3i HD PSU的连接端口。

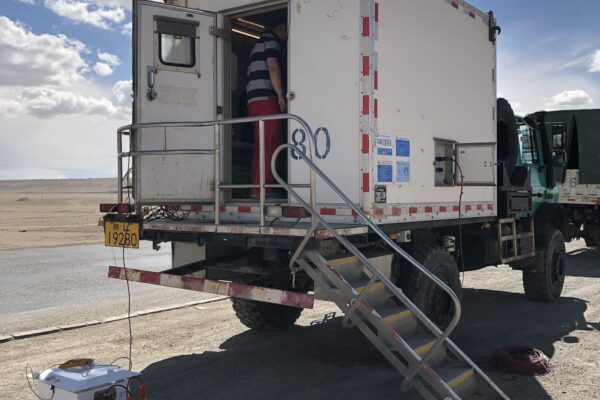

该装置通过无线电与振动器中的可控震源模块（SVM）通信，然后通过G3i HD遥测电缆将信息传输至记录车。
Source Vibe Module (SVM)
An SVM, installed in the vibrator truck, contains radios and interface electronics that communicate with SAMs in the field or with Source Base Modules directly if in radio range of the recorder.
Source Base Module (SBM)
SBMs contain radios and other electronics that communicate directly to SVMs in vibrator trucks that are in radio range of the recorder.
This is an optional system component when using the HyperSource solution.
Source Access Link (SAL)
A SAL is used in pairs to provide an optional point to point wireless link from a G3i HD PSU to a SAM which resides at the far end of the cabled telemetry link, typically outside of the G3i HD spread.
This is an optional system component when using the HyperSource solution.
